Scripting in Game Editor

Scripting is implemented using a script language compatible with C language and allows a high level of development and flexibility.
The scripts are created using the Script Editor action.
The Script Editor supports syntax colorizing and automatic indentation to increase your productivity. For those familiar with other programming languages, the Script Editor is the equivalent of the Integrated Development Environment or the IDE.
All Actor's Actions can be called from scripts.

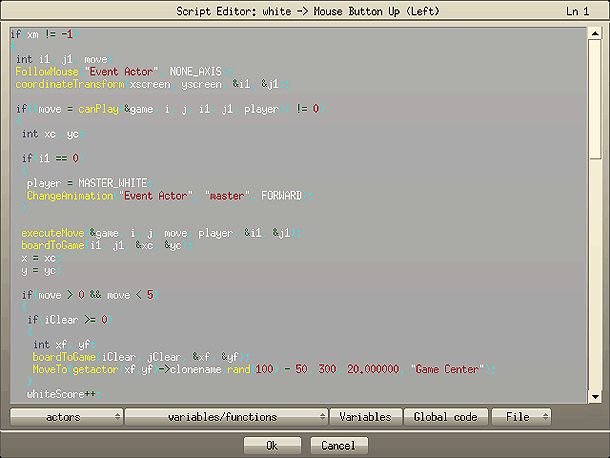

The Script Editor Title Bar:

The Script Editor's Title Bar shows the name of the Actor whose current script is currently being written. It also displays the Event that is recieving the script Actions. The "L" feature at the right in the Script Title Bar indicates the line that is currently being edited in the script input window.

The Script Editor Input Area:

The gray rectangular area is the input area. Type the scripts here.

The Script Editor Menu Bar:

The Script Editor Menu Bar is located at the bottom of the Script Editor input area. The Script Editor Menu Bar offers a number of options to help in accessing the features that are available for use within the Script Editor. An explanation of each Menu item is as follows:

actors:

Displays a listing of all of the Actors that have been created within a game. Left mouse clicking on the name of an Actor will save typing by inserting the Actor's name into the Script Editor input window.

variables/functions:

Displays a listing of all of the variables and functions that are available for use within the Script Editor's input window. For ease of use, left mouse clicking automatically inserts the function or variable into the Script Editor's input window.
When selecting an Action or function from the "variable/functions" list of the Script Editor menu bar, the respective panel pops-up to allow auto completion of the script.

Variables:

Think of a variable as a container that holds a value. Selecting this option, allows you to create both single and array variables to use in your game.

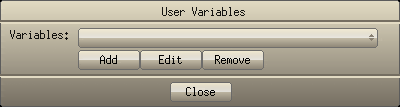

Selecting this button will open the User Variables panel that allows you to add, edit, or remove your variables. All variable attributes, excepting the variable name, can be edited.


Add:

- Name: Variable name. Variable names must begin with characters and must be followed by characters, numbers or '_'. Script Function names and Vars names are not already assigned. They cannot be used in the "New Variable" Name. (Example: MyNewActor OK, but CreateActor is Not OK)
- Variable type:
Integer, real (float point number) or string (max 255 characters).
- Variable visibility:
Global or Actor variable. Actor variables extends the Actor struct. Thus, an Actor variable can be accessed in the same way as the internal Actor variables. For example, use local Actor variables to make things like "Player Power".
- Array: You can create global array variables with this option. Your index will be between zero and size.
- Save group: If you want
to save or load this variable with saveVars and loadVars functions, set the group were this variable will be saved here .

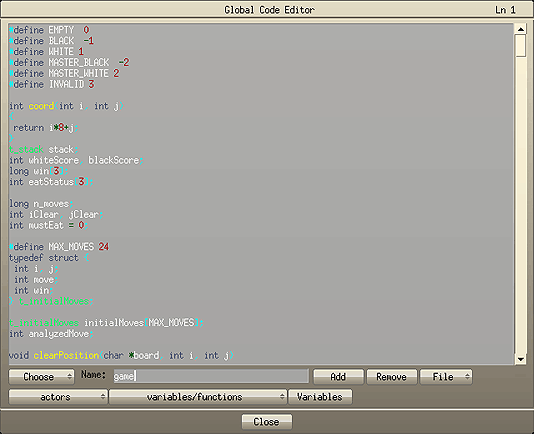

Global Code:

Use the Global Code Editor to freely add any 'C' code (arrays, structs, and functions).  The sky is the limit when you use this Editor but you should have your feet well grounded in the C Programming Language in order to use the Global Editor effectively. Your knowledge of the 'C' language will serve you well here.
Global Code can be accessed by any script.


After entering your code, enter a name for it and click on the "Add" button.
Edit a code by selecting it in "Choose" list. After completing the necessary changes, click on
the "Add" button.
Use the "Remove" button to delete a Global Code script.
Use the "File" button pop-up panel to save or load Global Code scripts.

Note: changing any of the internal Actor's variables (x, y, xscreen, yscreen, ...) has no effect on the Global Code.
To use the special actors creator or parent, put a in the caller Script Editor (like a comment: //creator)



File:


The File option gives you the ability to load a previously saved script or to save a current script in a external file.
