Canvas HP bar (Version 4) - Sword Style

Postby Hblade » Mon Nov 28, 2011 3:17 am

WARNING: New actor variables named RR, GG, and BB must be created before this will work properly :3

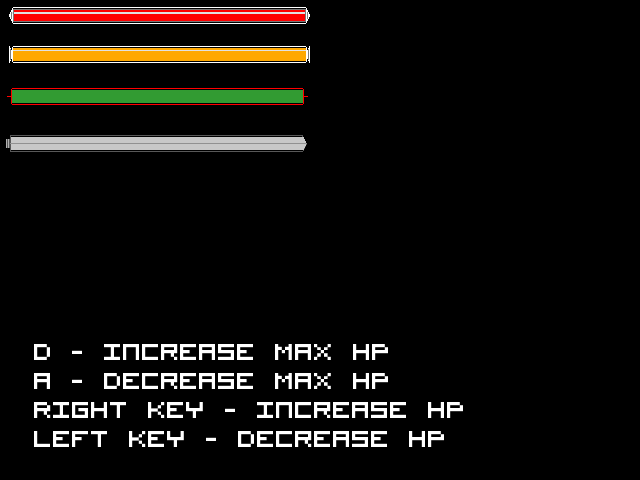

Sword Style: (Not available in demo)
Sword Style.png


How to use:
First, you want to set the variable called "bartmp" to what ever you want, such as HP for example. Then:
Code: Select all
SetSecondColor(177, 177, 177);
DrawBar(3, MAXHP, 200, 200, 200);
SetBackColor(155, 155, 155);


You set the border first, then you draw the bar (3 is sword), MAXHP is the width of the bar, (you can put anything), and the 3 200's are the color.
Setbackcolor determines the color of the lfie bar when drained.
Code: Select all
void DrawBar(int STYLE, int w, int R, int G, int B) {
    int i, i2, i3, i4;
            erase(0, 0, 0, 0);
                for (i2=4;i2<w-3;i2++) {
        setpen(BRC, BGC, BBC, 0, 1);
        moveto(i2, 2);
        lineto(i2, 14); }
                    for(i=4;i<bartmp-3;i++) {
        setpen(R, G, B, 0, 1);
        moveto(i, 2);
        lineto(i, 14);
                       }
    switch(STYLE) {
        case 0: //Bar Style
        setpen(RR, GG, BB, 0, 1);
        moveto(0, 7);
        lineto(0, 9);
        moveto(1, 5);
        lineto(1, 11);
        moveto(2, 3);
        lineto(2, 13);
        moveto(3, 0);
        lineto(3, 16);
        moveto(w, 7);
        lineto(w, 9);
        moveto(w-1, 5);
        lineto(w-1, 11);
        moveto(w-2, 3);
        lineto(w-2, 13);
        moveto(w-3, 0);
        lineto(w-3, 16);
        moveto(4, 16);
        lineto(w-4, 16);
        moveto(4, 0);
        lineto(w-4, 0);
        setpen(255, 255, 255, 1, 1);
        putpixel(3, 0);
        putpixel(w-3, 0);
        putpixel(3, 16);
        putpixel(w-3, 16);
        setpen(0 ,0, 0, 0, 1);
        moveto(4, 1);
        lineto(w-4, 1);
        moveto(4, 15);
        lineto(w-4, 15);
        setpen(124, 124, 124, 0, 1);
        moveto(2, 5);
        lineto(2, 11);
        moveto(w-2, 5);
        lineto(w-2, 11);
        setpen(216, 216, 216, 0, 1);
        moveto(4, 5);
        lineto(4, 11);
        moveto(w-4, 5);
        lineto(w-4, 11);
        setpen(224, 224, 224, 0, 2);
        moveto(4, 6);
        lineto(w-4, 6);
        setpen(120, 120, 120, 0, 1);
        moveto(4, 2);
        lineto(w-4, 2);
        moveto(4, 14);
        lineto(w-4, 14);
        moveto(4, 2);
        lineto(4, 14);
        moveto(w-4, 2);
        lineto(w-4, 14);
        break;





        case 1: // Bar2 Style
        moveto(0, 0);
        setpen(RR, GG, BB, 0, 1);
        lineto(0, 16);
        moveto(1, 2);
        lineto(1, 14);
        moveto(2, 4);
        lineto(2, 12);
        moveto(3, 0);
        lineto(3, 16);
        moveto(4, 0);
        lineto(w-4, 0);
        moveto(4, 16);
        lineto(w-4, 16);
        moveto(w-3, 0);
        lineto(w-3, 16);
        moveto(w-2, 4);
        lineto(w-2, 12);
        moveto(w-1, 2);
        lineto(w-1, 14);
        moveto(w, 0);
        lineto(w, 16);
        moveto(4, 16);
        lineto(w-4, 16);
        setpen(RR/2, GG/2, BB/2, 0, 1);
        moveto(1, 3);
        lineto(1, 13);
        moveto(w-1, 3);
        lineto(w-1, 13);
        setpen(225, 225, 225, 0, 1);
        moveto(4, 4);
        lineto(w-4, 4);
        setpen(255, 255,255, 1, 1);
        putpixel(3, 0);
        putpixel(w-3, 0);
        putpixel(3, 16);
        putpixel(w-3, 16);
        break;





        case 2: //Simple
        setpen(RR, GG, BB, 0, 1);
        putpixel(0, 8);
        moveto(0, 8);
        lineto(3, 8);
        moveto(4, 1);
        lineto(4, 15);
        moveto(5, 0);
        lineto(w-5, 0);
        moveto(w-4, 1);
        lineto(w-4, 15);
        moveto(w-5, 16);
        lineto(5, 16);
        moveto(w-3, 8);
        lineto(w, 8);
        break;
        case 3: //Sword Style
        setpen(RR, GG, BB, 0, 1);
        moveto(0, 4);
        lineto(0, 12);
        moveto(2, 4);
        lineto(2, 12);
        setpen(RR/2, GG/2, BB/2, 0, 1);
        moveto(1, 4);
        lineto(1, 12);
        moveto(3, 4);
        lineto(3, 12);
        moveto(4, 0);
        lineto(4, 16);
        moveto(5, 0);
        lineto(w-5, 0);
        moveto(w-4, 0);
        lineto(w, 8);
        lineto(w-4, 16);
        moveto(w-4, 16);
        lineto(5, 16);
        setpen(R, G, B, 0, 1);
        moveto(w-3, 2);
        lineto(w-3, 14);
        moveto(w-2, 4);
        lineto(w-2, 12);
        moveto(w-1, 6);
        lineto(w-1, 10);
        setpen(145, 145, 145, 0, 1);
        moveto(4, 8);
        lineto(w, 8);
        break;





          }
                    }

void SetSecondColor(int R, int G, int B) {
    RR=R, GG=G, BB=B; }
void SetBackColor(int R,int G,int B) {
    BRC=R; BGC=G; BBC=B; }



WARNING!
Before using this, you MUST create these variables or else you will get errors :3 This code uses actor variabels, which is why.
  • BRC - Actor Variable
  • BGC - Actor Variable
  • BBC - Actor Variable
  • bartmp - Global Variable
In my demo you see that I have 2 more variables, HP and MAXHP. Those are for the bar, you can see how that was done in the demo :)



HOW TO USE
First, you want to set the background color of the bar like so:
Code: Select all
SetBackColor(r, g, b);

Then, you want to set the main color of the bar ^^ (The white part on the screenshots, you can change that color :) the color for the outside of the bar) like this
Code: Select all
SetSecondColor(r, g, b);

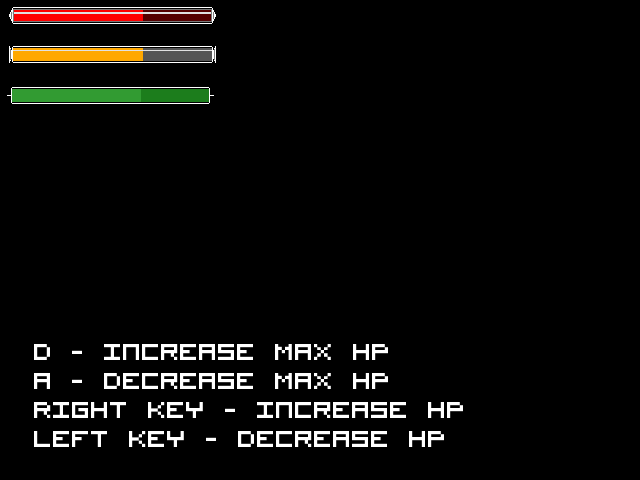

Now, last but not least -- You want to "draw" the bar :) There are 3 different styles, Bar 1, Bar 2, and Basic, as seen in this screenshot.


To use different ones, simply use this code
Code: Select all
DrawBar(style, width, r, g, b);

Replace Style with the style, (only 0, 1, and 2), and replace width with how wide you want the bar to be :)

Demo:
New.zip
(13.21 KiB) Downloaded 172 times
Subscribe to my YouTube? - Yes| No
User avatar
Hblade

Posts: 4455
Joined: Fri Dec 08, 2006 11:14 pm
Score: 181 Give a positive score

Re: Canvas HP bar (Version 2)

Postby JamesLeonardo32 » Mon Nov 28, 2011 10:55 am

Excellent!
As soon as i saw this, i almost immediatly wanted to use this in AXRIA. Though unfortunatly in AX the max Hp is 12, meaning it would look small, and changing enemy damage levels would take a while. Also may require fiddiling with the Health bars code, So maybe another time.

Good job as allways Blade!
JamesLeonardo32

Posts: 320
Joined: Wed Oct 13, 2010 4:57 pm
Score: 36 Give a positive score

Re: Canvas HP bar (Version 2)

Postby Hblade » Mon Nov 28, 2011 2:15 pm

You can always modify it. Just post a topic in the support forms on how to have a health bar the size of 150 pixels, but only have 12 health and have it go down equally.

(or what you could so, like in my demo, say bartmp=health, but instead.. you'd say bartmp=health*12)

Or max HP would be 12, right? So you would put this :)
Code: Select all
DrawBar(MAXHP*12, r, g, b);


That would multiply it's tiny length by 12 xD Then after that, well you can say bartmp=health*12 as well :) that would work perfectly I think xD If not post a topic in the support forums and I'm sure someone will help you ^^
Subscribe to my YouTube? - Yes| No
User avatar
Hblade

Posts: 4455
Joined: Fri Dec 08, 2006 11:14 pm
Score: 181 Give a positive score

Re: Canvas HP bar (Version 2)

Postby SuperSonic » Mon Nov 28, 2011 4:27 pm

Oh wow! I so gotta try this! It looks awsome :D

This would be perfect for my game. Can I have your permision to use it? (I'll add you in the credits) :D
A tree never hits an automobile except in self-defence.

Want to use your joystick or controller with Game Editor? Check out my controller engine =D
User avatar
SuperSonic

Posts: 1443
Joined: Fri Sep 24, 2010 9:24 pm
Location: Anywhere
Score: 72 Give a positive score

Re: Canvas HP bar (Version 2)

Postby JamesLeonardo32 » Mon Nov 28, 2011 4:53 pm

Hblade wrote:You can always modify it.

I know i can modify it, and it shouldn't be too hard. I was just saying if i had the time to do it since i want the first demo out by December!
JamesLeonardo32

Posts: 320
Joined: Wed Oct 13, 2010 4:57 pm
Score: 36 Give a positive score

Re: Canvas HP bar (Version 2)

Postby Hblade » Mon Nov 28, 2011 5:26 pm

Sure! ^^ Anyone can use this =D I'll also try making more themes later :3 one where you can choose the style! =D
Subscribe to my YouTube? - Yes| No
User avatar
Hblade

Posts: 4455
Joined: Fri Dec 08, 2006 11:14 pm
Score: 181 Give a positive score

Re: Canvas HP bar (Version 3)!!

Postby SuperSonic » Mon Nov 28, 2011 10:19 pm

Hblade wrote:Sure! ^^ Anyone can use this =D I'll also try making more themes later :3 one where you can choose the style! =D

Sweet! I'm gonna implement it in my game :P

And I like the new update. You should add even more styles like beveled and circular :wink:
A tree never hits an automobile except in self-defence.

Want to use your joystick or controller with Game Editor? Check out my controller engine =D
User avatar
SuperSonic

Posts: 1443
Joined: Fri Sep 24, 2010 9:24 pm
Location: Anywhere
Score: 72 Give a positive score

Re: Canvas HP bar (Version 3)!!

Postby Hblade » Tue Nov 29, 2011 1:25 am

good idea xD but whats beveled ?
Subscribe to my YouTube? - Yes| No
User avatar
Hblade

Posts: 4455
Joined: Fri Dec 08, 2006 11:14 pm
Score: 181 Give a positive score

Re: Canvas HP bar (Version 4) - Sword Style

Postby SuperSonic » Tue Nov 29, 2011 6:24 pm

Hblade wrote:good idea xD but whats beveled ?

What I meant was, you should give it a bebeled effect. Like this button made in gimp:
:D
A tree never hits an automobile except in self-defence.

Want to use your joystick or controller with Game Editor? Check out my controller engine =D
User avatar
SuperSonic

Posts: 1443
Joined: Fri Sep 24, 2010 9:24 pm
Location: Anywhere
Score: 72 Give a positive score

Re: Canvas HP bar (Version 4) - Sword Style

Postby Hblade » Tue Nov 29, 2011 8:10 pm

Oh! :D Good idea o3o
Subscribe to my YouTube? - Yes| No
User avatar
Hblade

Posts: 4455
Joined: Fri Dec 08, 2006 11:14 pm
Score: 181 Give a positive score
